Richard L. Gregory and Priscilla F. Heard
Reprinted by kind permission of the Editor
from: Quarterly Journal of Experimental Psychology (1983) 35A,
217-237
Brain and Perception Laboratory, University
of Bristol, Department of Anatomy, The Medical School, University
Walk, Bristol BS8 1TD, England
Helmholtz (1867) described as "irradiation" the apparently
greater size of a white compared with a dark square, or disc or
whatever of the same physical size. The illusory size difference
is reversed at low contrasts (Weale, 1974). It is also known that
rapid increases in brightness gives apparent movement (gamma movement),
though there is no agreed explanation for either phenomenon.
When narrow bordering stripes are added, further systematic phenomena
occur. With intensity modulation of an edge-striped grey rectangle,
which has a dark stripe on the left side and a light stripe on
the right (which is similar to figures used by Stuart Anstis and
Brian Rogers), the entire figure shifts, with reversed motion
when the background luminance is modulated. By presenting a pair
of such figures, mirror reversed one to each eye and fused stereoscopically,
the question may be asked: Do these illusory shifts produce stereo
depth? The answer is surprising: stereo is produced - but at the
cross-over with luminance of the central grey rectangle with the
background the depth change is opposite to that given by normal,
non-illusory, opposed lateral shifts. We interpret this anomalous
stereo depth as a switch of which edges of the stripes are fused,
with the change of relative contrast of the edges of the dark
and light stripes as the figure-background contrast is changed.
Measures of static shift, lateral movement, and stereo depth,
give somewhat different functions. These are considered in terms
of different signalled positions, stereo depth, and movement.
This study brings out the importance, for explaining such perceptual
anomalies, of distinguishing between neural signal channel characteristics
and which stimulus features from the display are selected and
accepted for perception. Although conceptually clearly distinct
these are all too easily confused in psycho-physical experiments.
Introduction
Are visual movement, seen positions of edges, and disparities
for stereoscopic depth, all signalled by the same channels? If
there are separate channels - presumably with different characteristics
appropriate for these very different functions - how is registration
at edges maintained, or attained against signalling discrepancies,
to hold the visual world together?
It may also be questioned - as a very general question for psychophysics
- whether the same or different features are accepted from a viewed
display or object for signalling for example movement, position,
and stereoscopic depth. Different channel characteristics and
different selections from the stimulus pattern, though these are
logically quite distinct, may very easily be confused in psychophysical
experiments. In either case - different channel characteristics
or different selections of features- - we would expect loss of
registration in perception between movement, position, and depth;
unless there are locking systems for holding the visual world
together, as has been suggested with some evidence (Gregory and
Heard, 1979).
A simple display of a vertical pair of contiguous narrow stripes,
one dark, the other light, appears to move dramatically sideways,
as a whole, as the striped display or its background illumination
is varied around the mean luminance of the stripes. The direction
of movement is always: the light stripe edge leading while the
background luminance is increasing. While the background luminance
is decreasing the dark stripe edge leads. Conversely, varying
the illumination of the striped figure with the background luminance
held constant produces movement in the reversed directions: now
the light edge leads with decreasing display luminance, and the
dark edge leads with increasing display luminance. If the luminance
of the background and figures are simultaneously varied in opposite
directions, then the apparent movement occurs similarly. There
is no movement if both change equally together. These phenomena
occur only with narrow stripes. Effects with broad edge stripes
(above about 10 mm of arc) will not be discussed in detail here.
For these experiments we separated the light and dark stripes
with a grey rectangle of intermediate luminance. Each striped
figure (the narrow light edge stripe, the central grey rectangle
and the narrow dark stripe) remains unchanged in luminance throughout,
as the background is changed or modulated for these observations
and measurements.
Although very similar, this is somewhat different from the display
used by Anstis and Rogers (1975), Rogers and Anstis (1975), and
Rogers (1976). In their experiments, which are closely related
to the phenomena and data reported here, they also use a central
grey region bordered by a light stripe on one side and a dark
on the other. Their display is given by fading a projected transparency
of a dark rectangle (or disc) in a bright background, into its
photographic negative (a bright rectangle or disc in a dark background)
which is slightly displaced to one side. This produces a rectangle
or disk where the opposite contrasts overlap, with a narrow stripe
on each side, one light and the other dark. With this arrangement
the central region changes in luminance reciprocally with the
background, within the luminances of the dark and light edge-stripes
which remain at constant luminance. Our display is simpler, for
only the background luminance changes, and it allows a greater
range of figure/background contrasts. Anstis and Rogers claim
that their apparent movement, positional shift, and stereo-depth
all obey essentially the same functions. We find significant,
indeed dramatic differences in these functions. It is primarily
these differences that will be discussed here.
Experiments
Stimuli
In our experiments, one of the striped rectangle figures was
placed above and precisely in line with the other, immediately
below it, which was exactly the same except that it was right-left
reversed; so that the upper had its light stripe on the right
and the lower on the left (Fig. 1).This arrangement doubles the
movement and shifts effects, and it provides a convenient display
for observing and measuring the static displacements and stereo
depth.
The rectangles were 1.5 deg. in height, separated by 0.5 deg.
vertically. The stripe width was 1.8 min of arc and the width
of the inner grey rectangles was one degree. The background subtended
11.5 deg. horizontally and 6.0 deg. vertically. The viewing distance
was 2 m. The stripes were made photographically, with high precision,
their widths being checked with a travelling microscope.

FIGURE 1. The edge striped rectangle figures.
These are precisely vertically aligned. The lower figure is the
mirror image of the upper. The widths of the narrow dark and light
edge stripes are equal, subtending 1.8 min of arc to the eye.
The luminance of the background was varied, the rectangle figure
illumination being held constant in these experiments.
Measurement of the illusory movement
The dramatic illusory lateral movements of the vertical borders
were measured by matching with true movements of a pair of oscillating
rectangular line figures generated on a C.R.T., which were optically
introduced beside the display rectangles. They were oscillated
with controlled amplitude, and phase locked to the luminance modulation
producing the illusory movement. They were viewed simultaneously
with the illusory movement, which was produced by modulating the
background luminance sinusoidally at 1.5 Hz with a 0.2 log unit
(60%) depth of modulation, for various mean luminances of the
background (Figs. 2 and 4).

FIGURE 2. Graph showing the amplitude of
the illusory movement, produced by a 0.2 log unit modulation of
background luminance, through a range of background luminances.
The illusory movement was measured by matching with a dynamic
oscilloscope display optically superimposed beside the illusorily
moving striped rectangles. The oscilloscope display consisted
of two vertically aligned rectangles, of similar dimensions to
the test rectangle figures, which oscillated horizontally with
amplitude controlled by the subject, atthe same frequency and
in phase with the background luminance modulation, which produced
the illusory movement of the striped figures. The modulation was
achieved with a rotating polaroid; which also modulated a second
light source activating a photo-detector to drive the oscilloscope
display, for measuring the illusory movement by setting its amplitude
to match the illusory movement. There were seven subjects and
each gave three matching judgements for each point.
We find that the illusory movement is always greatest when the
mean background luminance lies between the edge stripe luminances
(Fig. 2). There are no obvious phase changes of illusory movement
with changes of the mean modulated luminance.
The direction of the apparent movement (light edge leading while
the background luminance is increasing) is the same as found by
Anstis and Rogers; but they did not measure its amplitude.
Measurement of illusory displacements
Static displacements were revealed as vernier misalignments of
the upper and the lower (right - left reversed) striped rectangle
figures. The vernier displacements, which were only just discernible,
were measured by nulling. This was accomplished by shifting the
lower figure laterally, with a swinging optical flat, to produce
- by offsetting the illusory shifts - precise apparent alignment
of the upper and lower figures.

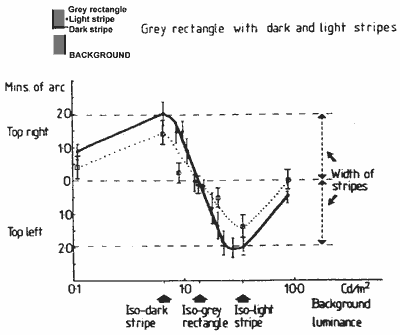

FIGURE 3. Graph to show the lateral static
displacements (vernier offsets) between the upper and lower rectangles,
at selected background luminances. Seven subjects adjusted a glass
plate. rotatable around its vertical axis, placed in the optical
path of the left eye for the lower rectangle figure, until both
rectangle figures appeared to be precisely vertically aligned.
There is seen to be maximum vernier displacement at isoluminance
of the background with the dark or the light edge stripes (when
they become invisible) and the offset is approximately equal to
their widths. The displacement is zero when the background is
isoluminant with the central grey of the rectangle figures.
The measured static displacement (Fig. 3) obeys a very different
function from the movement. As the background is set to successively
higher values, the direction of the displacement reverses at critical
luminance values, though movement continues without change of
phase with modulation for all luminance values. With background
luminance below the luminance of the dark edge stripes, and with
background luminance above the light stripe luminance, the movement
and the displacement are in the same direction. When the background
luminance lies in the range between the stripes, the movement
and the position (as measured by vernier offset) are dissociated
- they now occur in opposite directions.
Here our results differ from Anstis and Rogers’s (1975). They
presented three conditions:
(i) a black and a white square in contact;
(ii) a dark grey and a light grey square separated by a black
stripe;
(iii) the light and dark grey squares separated by a white stripe.
They report shifts of the black and white stripes relative to
the black/white interface of the first condition - in the same
direction as their observed movement. (Movement was generated
by a stimulus transition from condition (i) to conditions (ii)
and (iii).) These stimulus conditions are equivalent to our display
when the background luminance is equal to the white stripe or
the black stripe. But here we find that the vernier shift is in
the opposite direction to that reported by Anstis and Rogers.
They only presented two luminances of their square: a full range
of luminances reveals a different picture - that the vernier shift
is opposite in direction to the movement. This is seen in the
vernier and movement curves of Figure 6.
Measurement of the illusory stereo depth
Having found that the functions for amplitude of illusory movement
and static displacement are essentially different, we now asked
the question: can stereo depth be produced by the illusory movements,
or by the illusory displacements - when presented in opposed directions
to each eye? We already have opposed directions of illusory movement
and static displacement for the upper and lower stripe figures.
This occurs because the dark and light stripes are on opposite
sides of the rectangle figures; the upper rectangle having its
dark stripe on the left, while the lower rectangle’s dark stripe
is on the right. All that is necessary to test for stereopsis
is to add an identical pair of these rectangle figures, mirror
reversed to one eye (the left), while the other (the right eye)
views the rectangles without reversal. Mirror reversal, of both
the upper and lower striped rectangles for the left eye, is achieved
by a Dove prism (Fig. 4). The resulting slight increase in effective
optical path length, and slight loss of light, is corrected for
the right eye with a compensating glass block. Thus, the illusory
movements and displacements were presented in horizontally opposed
directions to the eyes (for experimental convenience from only
one pair of rectangle figures) to discover whether they produce
stereoscopic depth; and if so how the movement, displacement,
and stereo depth are related.
Stereo depth was measured in two ways: first, by luminous depth
markers (L.E.D. line displays) introduced optically with a 45
degree half-silvered mirror, placed before the Dove prism so that
the marker distances were seen by normal stereopsis unaffected
by the Dove prism’s mirror reversal to the left eye. The markers
were set for distance by the subject, using electrical control.
For the second method, the depth seen between the upper and lower
rectangles was reduced to zero by nulling: by optically shifting
one of the rectangles sideways, with the swinging glass plate
which was also used for measuring the vernier misalignments (Fig.
4).
Stereo depth was clearly seen between the upper and lower rectangles
in the conditions of opposed illusory displacements to the two
eyes. Depth was readily measured by the matching or by the nulling
method (Fig. 5). The depth observations and measurements were
extremely stable - except when the background was isoluminant
with the central grey rectangle, when the depth was labile, and
almost impossible to measure either by the movable markers or
by the nulling technique.
In an earlier experiment one of us (Gregory, 1979) reported absence
of stereo depth with binocularly opposed illusory movements of
disk figures with light and dark edges. These were similar to
the rectangles with edge stripes used here, though the earlier
observations used a variable colour interference filter to control
the luminance ratio between a differently coloured (green) background
and (red) disk figures. This technique was adopted so that standard
colour projection slides could be used. The absence or near loss
of stereo in these conditions, we attribute firstly to the use
of colour, as Stereo was absent or reduced with only colour contrast
(Lu and Fender, 1972; Gregory, 1977) and secondly to the disk
figures being somewhat less effective for stereo than the rectangles
which have long vertical edges. We regret that this reported observation
may have been somewhat misleading as it does not generalize to
all conditions.

FIGURE 4. Experimental apparatus, showing
the component parts used in these experiments; though not all
were used at the same time.
(1) The Dove prism was used in
the stereo experiments to give right/left reversal of the rectangle
figures to the left eye (a glass block was used to equalise the
optical distance for the right eye).
(2) The half silvered mirrors,
placed at 45 degrees to the line of sight introduced the binocularly
viewed L.E.D. depth markers (mounted on the motor driven saddle
of the lathe bed optical bench), for measuring depth; and also
the oscilloscopes moving line rectangles, which were used for
measuring the illusory movement.
(3) The glass plate, placed in
the optical pathway of the lower rectangle figure. could be rotated
around its vertical axis. It was used with binocular viewing of
the rectangle figures (mirror reversed to the left eve) to null
the depth difference between the upper and lower rectangles; and
monocularly to null the lateral shift between the upper and lower
rectangles for measuring vernier displacement.

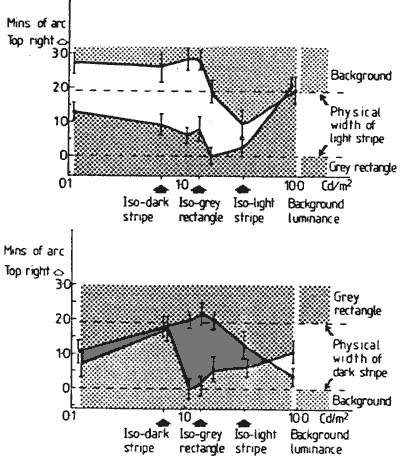

The functions found here describing the vernier displacements
and the stereo depths do not agree. When the background is set
at successively higher values lying within the luminances of the
stripes (when all the contours are clearly visible), the stereo
depth becomes greater as the Static shift becomes less. When the
background was changed from slightly darker to slightly lighter
than the central grey, there was minimal vernier displacement;
but here there is a dramatic switch of depth. The upper rectangle
moves forward and the lower rectangle backward. This is especially
dramatic as the difference in distance of the rectangles is maximum
when the background is just off isoluminance with the grey, though
at exact isoluminance stereo depth is entirely lost.
These findings clearly show a dissociation of the stereo depth
from the static displacements measured by vernier offset. The
vernier displacement reverses direction as the background luminance
crosses the luminance of the dark or the light stripes (Fig. 3);
but the depth continues in the same direction while the background
crosses isoluminance with the stripes.
When the background luminance is modulated sinusoidally, the
upper and lower striped rectangles move backwards and forwards,
so that one approaches as the other recedes, to oscillate in depth
exactly out of phase with each other. This dramatic movement in
depth as the intensity is modulated across isoluminance is seen
dynamically in the critical luminance range where static depth
measurements cannot be made. This is represented by the dashed
line in Figure 2. Throughout the background range where measurements
can be made, the seen depth changes with modulation of the background
luminance correspond to the static depth measures. Stereo depth
is dissociated from the sideways movements when the background
crosses isoluminance with the central grey (Fig. 2). This is where
there is dramatic switch in depth. This depth switch would normally
be given by a physical disparity shift of as much as four stripe
widths, over this veer small change in background luminance around
the luminance of the central grey. For normal stereo giving the
same change of depth, the directions of the opposed lateral movements
in each eye would have to be in the opposite directions to these
illusory lateral movements.
It is difficult to make direct comparisons between these stereo
depth measurements and those of Anstis and Rogers (1975), and
Rogers and Anstis (1975), as the experimental conditions were
different. Anstis and Rogers presented a constant luminance (positive)
rectangle to the left eye. The right eye was given static stages
from a dissolve of a positive rectangle into a slightly displaced
negative rectangle. This generates their illusory movement. The
first stage of this dissolve was the same as the left eye’s rectangle,
the later stages of the dissolve contained a greater proportion
of the negative and correspondingly less of the positive. They
found a change in depth through this sequence which was in the
same direction as the movement; but when the right eye contained
a greater proportion of negative than positive measurements could
no longer be made. At this point there was rivalry and fusion
broke down. These results agree with half of the function we have
reported above; as we too find that movement and changes in stereo
depth are in the same direction - until our background luminance
crosses isoluminance with the central grey rectangle. Anstis and
Rogers were unable with their display arrangement to measure depth
across this, as it turns out, critical luminance range.

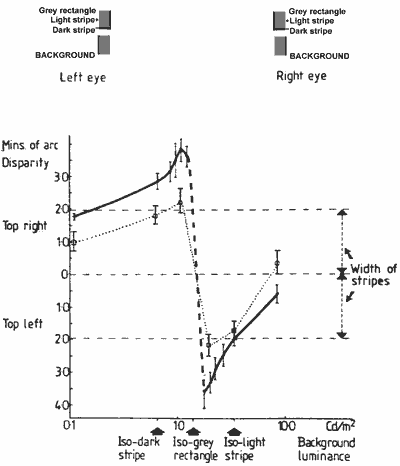

FIGURE 5. The graphs show the depth between
the upper and lower rectangle figures at selected background luminances.
In graph (a) depth is measured by matching with depth marker lines.
The depth measures were converted into equivalent disparity units.
In graph (b) the depth was measured by shifting the lower rectangle
sideways with a glass plate to the left eye to null depth between
the rectangles. This gives a disparity measure directly, which
was halved so as to be appropriate for the figures to both the
eyes. When the background is darker than the grey rectangles,
the top one appears behind the lower one. There is a dramatic
switchover in depth as the background becomes lighter than the
grey rectangles: the top comes forward and the lower one back.
The luminance profiles of the top rectangle figure, to the right
and left eyes, are shown at selected background luminances. The
slashed and dotted lines show the alternative same sign fusion
edges for the stereo depth. The slashed lines show the pair of
edges that have the greater contrast. When the background is isoluminant
with the grey rectangle both pairs of fusion edges have the same
contrast.

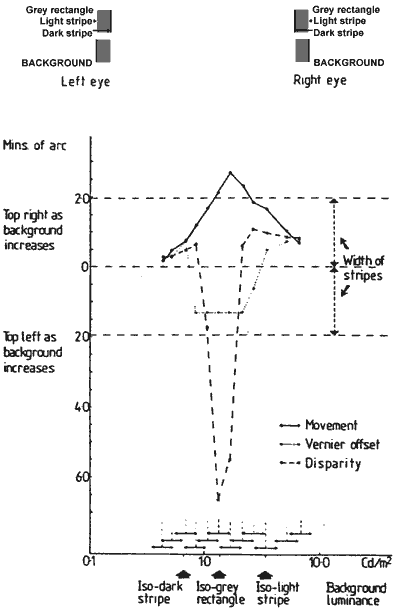

Comparison of the three measured functions
The three measured functions - amplitude of movement, static
shift, and stereo depth - are plotted for comparison with the
same coordinate units in Figure 6. The illusory movements were
produced by 0.2 log unit, at 1.5 Hz modulation of the background
luminance, and measured by matching with the C.R.T. display. The
two other functions were measured at set background luminances.
The depth and vernier offset were measured at the end points of
the background luminance modulations used for producing the illusory
movement; and the shifts in depth, and the vernier offset over
these ranges of luminance change, are plotted with the movement
measures for comparison on the same graph (Fig. 6).
It will be seen that for background luminances less or greater
than the dark and light edge stripes, the three functions are
the same in direction; but the amplitude of the movement is greater
than the amplitude of the static shifts. With background luminances
between the luminances of the light and dark stripes, the functions
diverge, and the divergences are extreme around isoluminance with
the central grey. Here movement is maximal while depth change
is also maximal; but, as we have said, it is in the opposite direction
from what would be given by equivalent physical movements viewed
stereoscopically.
So there are discrepancies, both for direction and extent, between
the three functions.
Further observations
The apparent movement is greatly affected by the width of the
stripes. For movement of the rectangle figures as a whole to occur,
the edge stripes must not subtend more than about to 10 min of
arc. The movement is most pronounced with narrower edge stripes.
The stripes for these experiments were 1.8 min of arc. With stripes
wider than about 10 min of arc. the rectangle figures do not move
as a whole with any modulated luminance. Although the broad stripes
do not shift, they clearly shrink and expand when the background
is modulated around their luminances (this is Gamma movement,
discussed below). There is a curious asymmetry here: broad light
stripes shrink when the background is increased up to isoluminance,
and they expand when isoluminance is approached downwards from
a greater background luminance. Wide dark stripes show no such
asymmetry: they shrink as the background approaches isoluminance
with them, either from above or from below their luminance.
It is worth noting that while sweeping over the entire luminance
range, the figures appear to move as a whole, with all the borders
having the same velocity; though on close inspection, when the
modulated background is below the central grey luminance of the
display, only the dark stripes are seen to move.

FIGURE 6. Graph showing the amplitude of
movement, static shift, and stereo depth on the same co-ordinates.
The illusory movements (continuous line) were produced by a 0.2
log unit modulation of background luminance at 1.5 Hz. The two
other functions: vernier offset (dashed line), and depth (dotted
line) were measured statically at the end points of the luminance
modulations producing the illusory movements, and their respective
shifts are plotted.
A well known effect may easily be confused with these border
shifts and movements. A rectangle continuously graded from dark
to light (a long luminance wedge) exhibits a moving bar, or band,
as either the background or its luminance is varied. The wedge
itself is not, however, seen to move. This effect is very different
from the moving edge-striped rectangle figure phenomena reported
here. The moving band on the wedge we attribute to local loss
of contrast with the background, at the region where the wedge
is isoluminant with the background: the band therefore runs along
the wedge as the background is changed, but with no movement of
the wedge itself.
The width of the grey rectangle separating the narrow stripes
was not critical for these effects. It may indeed be absent; or
it may subtend at least 10 deg. However, when present its luminance
relative to the light and dark stripes was critical. The dramatic
switch in depth occurred as the background crossed isoluminance
with the grey; not as it crossed the intermediate luminance between
the light and the dark stripes. This was clearly indicated in
subsidiary experiments, in which the relative luminances of the
central grey and the stripes was varied, but these will not be
discussed further here.
When the display is blurred, by viewing with a defocusing lens,
or when presented at a low level of illumination, the illusory
movement and stereo depth are increased. Movement is also markedly
greater in peripheral vision.
The area of the background is surprisingly uncritical. The same
phenomena are observed with a surround of less than 10 mins of
arc. This suggests that the adaptation level of the eyes is not
involved in these phenomena. This will be investigated further.
Interpretation of results
We started by asking whether position, movement, and stereo depth
are signalled by the same, or by different channels which might
be specially designed (by Natural Selection) to the functional
requirements of edge, movement, and depth perception. If they
are different we should expect dissociation under some conditions:
which itself raises the question of why registration errors at
edges or borders are normally seldom if ever observed. We have
previously postulated active "border locking" (Gregory
and Heard, 1979) to maintain registration against discrepant signals
from channels which would, if they are specially adapted for different
functions, have different characteristics and so sometimes must
surely give incompatible signals - to produce misregistrations.
At isoluminance, contiguous regions of contrasting colours (such
as red and green) are unstable; and there is instability also
at very high contrasts, especially at low illumination where retinal
delays are large (Gregory, 1977). These instabilities we tentatively
attribute to loss of border-locking, in the absence of luminance
contrast, when neighbouring regions are isoluminant with only
colour contrast; or when there are extremely different retinal
delays at very high luminance contrast when locking appears to
break down.
A further and very different (though easily confused) source
of instability or misregistration is that different features of
the stimulus display may be selected, perhaps for different kinds
of processing for different tasks. This feature selection principle
will be invoked in particular to explain the anomalous stereo
result reported above.
We shall now consider some implications of different channel
characteristics. The concept of channel is not altogether clear,
and the term is used in several senses, though all refer to transmission
of signals or of information. Channels can be anatomically defined
structures, such as a nerve fibre or a nerve bundle; or they may
be complete modalities, associated with different sense organs
such as the visual and auditory "channels" of eyes and
ears. Channels can also be defired functionally, where there are
no distinguishing pathways. For an electronic example of this,
in multiplex telephony there is only one "anatomical"
path (a high band-width co-axial cable) but twenty or more information
channels, for separate messages, given by a high frequency carrier
which is divided into a frequency band for each functional channel,
though without anatomical distinctions. Even cognitive selection
of messages of different meaning has been described as channels,
as in the "cocktail party effect" (Treisman 1964). Any
of these may be valid, according to context, but here we are restricting
"channel" to transmission characteristics of more peripheral
neural signalling. The phenomena observed here may suggest that
(quite apart from selective adaptations) specific channel characteristics
can be revealed as dissociations between observed edge position,
stereo depth, and movement.
There are dangers in this interpretation, which are most evident
for the reversal of the stereo depth as the background crosses
isoluminance with the central grey rectangle; though the edge
positions (measured from vernier displacement) and the movement
(measured by matching with true movement) do not reverse direction.
The point is that what are accepted as the corresponding edges
for stereo fusion may change when the contrast values of the figures
change. It may be that different features - different edges of
the display - are selected for various visual tasks. So the dissociations
of the three functions may be due to different selections from
the available stimulus features rather than to differences of
neural channel characteristics. The problem is to distinguish
between these conceptually very different though easily confused
possibilities.
It is likely that which edges are selected as corresponding for
stereo fusion depends upon their relative contrasts. The sudden
switch of stereo depth in the "wrong" direction may
then be explained by supposing that two plausible fusion rules
are obeyed by the visual system. The first was suggested by Whittle
(1964): that edges of the same luminance sign fuse. In these striped
rectangle displays, having a light stripe in one eye and a corresponding
dark stripe in the other, there are two alternative fusions as
there are two edges having the same luminance sign. The inner
edges of the dark stripes in one eye may fuse with the outer edges
of the light stripes in the other eye; or the outer edges of the
dark stripes may fuse with the inner edges of the light stripes.
On this rule alone, therefore, this particular situation would
be ambiguous. This ambiguity is usually resolved, we suggest,
by a second rule: that where there are such alternative candidates
for fusion, those with the greatest luminance contrast are favoured.
This notion is shown diagrammatically in the luminance profiles
of Figure 5. As the background luminance changes there will he
a change in contrast of the outer edges, but not of the inner
edges of the stripes. The sudden change of depth occurs with the
switch-over of which edges of the stripe are fused.
When the background is darker than the central grey rectangles,
the outer edge of the light stripes will have a greater contrast
with the background than the inner edges have with the central
grey rectangles; and the outer edges of the dark stripes will
now have less contrast with the background than their inner edges
have with the central grey. So, by the second rule, the outer
edges of the light stripes will now fuse with the inner edges
of the dark stripes. When on the other hand the background is
lighter than the central grey rectangles, then the outer edges
of the dark stripes will have a greater contrast with the background
than with the inner edges with the central grey; and the outer
edges of the light stripes will have less contrast with the background
than their inner edges with the central grey. So now the other
pair of edges will fuse - the outer edges of the dark stripes
will now fuse with the inner edges of the light stripes.
In the special case when the background is isoluminant with the
central grey, the edges for both of the possible fusions have
the same contrast. So the situation with this luminance ratio
is ambiguous. This is where the depth is found to be extremely
labile. The visual system appears to be unable to select either
pair of edges for stereoscopic fusion in this special situation;
although for the narrow stripes, there is no diplopia and no obvious
rivalry.
Experiments on edge location
The observed switch in depth when the background is changed from
just darker to just lighter than the central grey rectangle fits
this account in direction; but for narrow stripes, not in extent.
This model would give a step-function at the supposed switch of
fusion of the boarders across a stripe. Also, it would give stereo
depth exactly corresponding to the disparity given by a stripe
width. We find however that the observed depth switch is not quite
a step-function, and the change of depth is somewhat greater than
normal stereo depth corresponding to a stripe width. The depth
increases beyond this expected maximum when the background luminance
is close to isoluminance with the central grey. These findings
suggest that we should look for shifts of individual edges with
the changes of background luminance.
It turned out in practice to be difficult to measure individual
edge positions; but it is possible with a carefully designed,
light or dark, pointer. We found it impossible to make judgements
with a line or a slit pointer; but a wedge-shaped pointer can
be positioned under the vertical edges of the display to measure
individual shifts of each edge for any background luminance.
Measurement of individual edges
A luminous wedge pointer was introduced optically with a half-silvered
mirror, and positioned for measurements by the subject, under
each of the four edges of the lower rectangle. The pointer was
moved with the swinging glass plate shown in Figure 4. As a check
against the possibility that the pointer contrast might have a
biasing effect, a dark wedge pointer was substituted for the light
pointer in preliminary trials. No biasing effect was found, but
the luminous pointer was somewhat easier to see and so was used
for these measures, although the subject’s task was still by no
means easy.

FIGURE 7. Graphs showing the position of
edges of the light (a) and dark (b) stripes at selected background
luminances. These were measured with luminous wedge shaped pointers
positioned under the lower striped rectangle.

FIGURE 8. Graph showing the vernier function
of the main experiment (Fig. 3, continuous line) and the combined
shifts of the outside edges (dotted line) measured with a luminous
pointer.Results for two practised subjects (the authors) are shown
in Figure 7. It can be seen that both the inside and outside edges
of the light and dark stripes may shift as the background luminance
is changed.
For the vernier displacement measures of the main experiment
(plotted in Fig. 3) the subjects were instructed to, and believed
they were, aligning the outside edges of the striped figures.
This vernier function is very similar in its form to the outer
edge shifts measured by the pointer in the experiment just described
(Fig. 7) though of somewhat greater amplitude. These two functions
are shown for comparison in Figure 8. A possible reason for the
amplitude difference will be suggested after we discuss the stereo
depth function.
Given the fusion rules for stereo depth suggested above, we should
expect this stereo function (Fig. 5) to correlate with the shifts
of the edges as selected by the fusion rules. For background luminances
less than the grey rectangle, they would be the outer light and
the inner dark edges. For background luminances greater than the
central grey, they will be the outer dark and the inner light
edges. The shifts of these borders (measured by the wedge pointer)
correlate well with the stereo depth function in form; but their
amplitude is too small. The functions are plotted for comparison
with one of - the depth functions of the main experiment, in Figure
9.
It does seem that the pointer-measured functions are smaller
in amplitude than the equivalent functions (vernier shift and
stereo depth) of the whole figures as measured by the nulling
and matching techniques in the main experiment. This might be
because different features of the display are accepted for the
pointer measures: for example only the ends of the borders contiguous
with the pointer, rather than the entire length of the borders
which may be used for matching and nulling. Or very different,
the luminous wedge-shaped pointer might perhaps, by some interactive
process, affect the measured positions; but the tests with the
dark pointer, and the absence of any observable change as either
pointer was introduced, are evidence against this nuisance. To
argue from similarities or differences of the measured functions
to whether the same or different channels are operating, we must
decide whether the form of the functions or their relative amplitudes
give the best indication for identifying channels. We consider
that form gives a better indication than amplitude, for amplitude
may well depend on such factors as signal/noise ratio demanded,
or required, according to the task; and given the large spread-function
of the optics of the eye, such a change of demanded or required
signal would produce a correspondingly large change of amplitude
of the function. More detailed measures, and further considerations
of these border shifts and changes of apparent widths of the stripes,
will be considered in a later paper.

FIGURE 9. Graph showing the depth function
of the main experiment (Fig. 5b) and the combined shifts of the
striped edges (dotted line) selected according to the stereo fusion
rules described in the text, and measured with a luminous pointer.
General discussion
The results reported here suggest that two of the three dissociations
we started with - position and stereo depth - need not be due
to differences of neural channel characteristics; but rather to
which stimulus features are selected by the visual system. We
suggest that for the stereo depth the highest contrast edges of
the same sign are selected for fusion, and for the vernier alignment
it is the outer edges of the stripes that are selected.
The movement function for the figure as a whole (Fig. 2) is not
so easily explained in terms of the measured shifts of the individual
edges (Fig. 7a,b). Here it can be seen that the dark and light
stripes shift differently. The measured edges of the light stripes
do not shift significantly with changes of background luminance
below that of the grey rectangle. in this background luminance
region both edges of the dark stripes move together in the "required"
direction. So, if the shifts are directly related to movement,
only the edges of the dark stripe contribute to movement below
isoluminance with the grey. As already noted, there does appear
to be more movement of the dark stripes, with background luminance
modulation in this range. One might expect that where the movement
is maximum - around isoluminance with the grey - there would be
consistent shifts of the edges but this is not the case. The situation
in this luminance range is complicated. Most of the edges shift
in the wrong direction. Above isoluminance of the background with
the grey rectangle, the higher contrast dark stripe edge shifts
in the right direction while the other dark stripe edge shifts
equally in the wrong direction. This suggests that signals from
the lower contrast edge are effectively rejected. The situation
here for the light stripes may be similar; for although the low
contrast edge shift changes direction in this range, the high
contrast edges do shift systematically in the right direction
for the movement. The conclusion is that if the higher contrast
edge is always selected, the movement function is compatible with
the other functions, except in the range immediately around isoluminance
of the background with the grey rectangle which, anomalously,
is where the movement is greatest. This suggests that movement
is not signalled by the same mechanisms, or channels as those
responsible for vernier shift, and stereo depth from disparity;
and so movement is dissociated from them in this situation.
We are now left with two basic issues to explain: first the difference
in the channel characteristics of the signalled movement compared
to the signalled position and stereo depth; and secondly the cause
of the perceived movement, and shifts of the edge position and
stereo depth with changes in luminance contrast.
Let us first consider the difference in the channel characteristics
of the movement compared to the position and stereo depth. It
is well known that there are several phenomenally different kinds
of movement. It would be highly surprising, and in some cases
surely impossible for all these to be mediated by the same channel.
It is certainly clear that different channels are involved when
movement is signalled by the eyes tracking moving objects, by
the "eye/head system", than from retinal images running
across the retinal receptors while the eyes are at rest, giving
movement signals from the very different "image/retina system"
(Gregory, 1966).
Here we are only dealing with image retina movements, which may
however involve more than one - channel. Although about six phenomenally
different types of image/retina movement can be identified, it
is not clear whether they share similar underlying mechanisms
or channel characteristics. It has been suggested by Braddick
(1974) that there are two different movement channels - a long-range
process and a short-range process - associated with phi movement
and "co-operative" or global movement. This occurs when
regions of dots are displaced within a dotted background, and
are seen to move as a unitary whole. These movements involve real
shifts in edge location, and there is no suggestion that the seen
movement under these conditions has different characteristics
from the seen edge positions. In our situation the physical position
of the edge remains stationary, only the luminance contrast is
varied; but our luminance changes may activate the same channels
as for a physically shifting edge. We are certainly concerned
here with short range processes, as our illusory movement cannot
be obtained with stripe widths more than about ten minutes of
arc.
Perhaps the other well known illusory movements produced by luminance
changes, rather than by physical shifts in edges, are produced
by the same channel characteristics as our movement, and may be
dissociated from signalled edge position. Irradiation (Helmholtz,
1867), or Gamma movement (Kenkel, 1913; cf. Boring, 1942 p. 597)
occurs where a brightening stimulus is seen to expand, and a darkening
stimulus is seen to contract. The classical irradiation effect
of a bright stimulus appearing bigger than a dark stimulus is
consistant with gamma movement. However Weale (1974) has described
a new effect, in which a low contrast dark square appears larger
than a low contrast light square. This apparent size change occurs
in the opposite direction to the gamma movement, and is another
example of dissociation between movement and signalled edge position.
In our situation, the dark striped side of the display obeys gamma
movement, but the light striped side of the display moves in the
opposite direction. As the display is brightened, the light striped
side contracts from the background and the dark striped side expands
into it. There is no agreed explanation for gamma movement, although
increase in scattered light on the retina with increasing brightness
may be a partial explanation (Helmholtz, 1867).
Delta movement occurs in the direction of the earlier stimulus
when the later one is much brighter. It gives a ‘reversed’ movement
and is not strictly produced by luminance changes alone, and so
may not be comparable to the situation here. It is probably best
explained by the well known long retinal action time with dim
stimuli, and shorter action time with bright stimuli: so in the
extreme and critical conditions needed the arrival times for the
signals may be reversed from the stimuli times. The dark and light
stripes of our displays should similarly signal with different
retinal action times. They do not however have extremely different
luminances and the rate of change of luminance is not critical.
Further, the observed movements occur equally whether the striped
display or the background is varied in luminance. We therefore
rule out differences of retinal delay as significant for these
effects.
Anstis (1970) described an illusory movement, which he termed
"reversed phi", occurring when a photographic positive
is gradually substituted for a slightly displaced negative; the
movement is in the opposite direction to normal phi. It is not
clear that this phenomenon is related to phi movement because
it does not have the same critical time-distance relation (Korte’s
laws), so it is unfortunate that the term "reversed phi"
came to be used, and it has now been abandoned by Anstis and Rogers
(personal communication, 1981). The movement they describe is
in the same direction and may be the same as the illusory movement
produced by the luminance changes in these experiments, although
the displays are somewhat different. With the experimental technique
they used, Anstis and Rogers were unable to present the same (mirror
reversed) figures to the eyes for stereo fusion with luminance
ratios crossing isoluminance because they presented a grey shape
(without stripes) to one eye at constant luminance, while the
other eve was given static stages from the sequence of negative-displaced-positive
dissolves. They did not, therefore, find the switch in depth across
isoluminance of the background with the grey rectangle. Considering
vernier measurements they are consonant with their depth and movement
functions; hut arc for the most part in the opposite direction
from ours. So Anstis and Rogers find no dissociation, in their
situation, between movement and signalled position or stereo depth.
Another piece of strong observational evidence for separate channels
for movement and position is provided by the fact that the after-effect
of movement is paradoxically seen without changes in position
(Gregory, 1966, p. 107). There is some evidence (Tyler, 1973)
that stereo depth and static edge position are mediated by different
channels. High spatial frequency modulation of a line is not resolved
as well when stereoscopically fused with a straight line, as when
viewed monocularly. Tyler suggested that vernier and stereoscopic
processing are carried out by two systems, operating relatively
independently at higher cortical levels, and that depth signals
are integrated over a longer time (Foley and Tyler, 1976).
Having discussed differences between movement, edge position
and stereo depth, ~ can now address the question of how the visual
system operates to produce the movement edge position and stereo
depth shifts that we are describing with changing luminance. We
can discuss this issue from two aspects: relevant physiological
evidence and hypothetical operations that are supposed to be carried
out by the visual system.
Considering what is known of the physiological basis for movement
as normally seen from retinally shifting images (‘image/retina’
movements), movement is conveyed by sequentially changing ratios
of intensity between neighbouring receptors, as signalled by later
neural channels. For the rabbit retina, as Barlow and Levick (1964)
found, movement can also be signalled - by light or by dark spots
- moving within a receptive field; so at least for the rabbit
retina the primary units or channels for signalling movement to
the brain are not the receptive fields of ganglion cells but are
earlier. On the other hand, the primary units for signalling edge
position must require comparisons between signals from separated
receptive fields. This difference could well be the key for why
the movement function is different from the position and stereo
depth functions. Not only can movement be signalled within a ganglion
cell’s receptive field; there is also overwhelmingly strong evidence
that movement can also be signalled from successive stimulation
of widely separated ganglion cells - provided the time intervals
and distance between stimuli are appropriate for Korte’s Laws
of phi movement (Korte, 1915; Graham, 1965).
It is not clear that monkey or man have direction-selective movement
detectors prior to the cortex. Hubel and Wiesel (1968) describe
that for monkey, movement without directional specificity is signalled
b a class of cortical cells named "simple", and particular
directions of movement by "complex" cortical cells.
These cells are often described as bar or edge detectors mediating
perceived edge position and stereo depth. Zeki (1974) describes
cells in the posterior bank of the monkey’s superior temporal
sulcus that respond specifically to movement. Movement is also
signalled in the superior colliculus of the mid brain, where it
appears to mediate eye movements. There are well known indications
of cells having different properties and different sizes of receptive
field, especially Y-cells and X-cells as described by Cleland
and Levick (1974) in the cat and Gouras (1968) in the monkey.
They find that the Y-cells, which have a transient response, possibly
mediating movement, have larger receptive fields, and are more
sparsely spaced than the X-cells which have a slow and sustained
response, add possibly mediate signalled position. It seems unfortunate
that these physiological recordings require moving stimuli. There
is also human psychophysical evidence supporting the notion that
position and movement are signalled by separate channels having
different receptive field sizes, the movement channel having lower
spatial frequency (King-Smith and Kulikowski, 1975).
There have been several attempts to model the visual system’s
processing of the visual image. Anstis and Rogers (1975). Rogers
and Anstis (1975) and Rogers (1976) suggested a spatial summation
model to explain their illusory movement, and shifts of edge position
and stereo depth. They convolved the luminance profiles of their
stimuli with a Mexican hat type function, which they derived from
typical receptive field characteristics. The resulting convolved
functions demonstrated an effective contour shift in the direction
of their illusory movement and shifts. They explained the shifts
from the overall shape of the convolved function directly without
specifying what part of the function was giving the effective
edge, such as the peak or the zero-crossing of the second derivative.
This type of theory is attractive, but there are two problems
in applying it to our situation. First, the edges of the stripes
are not resolved with the size of the convolving function’s space
constant chosen by Anstis and Rogers; second, we do not find all
our measured functions moving together, so the model does not
obviously fit all our functions. Watt and Morgan (1983) have found
that their vernier acuity experiments are best explained by a
model which encodes only the occurrence and location of zero-crossings
in the second derivative of the retinal light distribution. Marr
(1982) has described a theory of vision in which the zero-crossings
of the second derivative of a Laplacian operator, can most efficiently
represent the image. It would be interesting to see how well these
models can account for our data. The rules we have suggested for
feature selection may well be extended to restraint rules based
on what objects generally do (Ullman, 1979).
Possibly the shifts of position with the luminance changes are
due to what we have previously called "border locking",
which is supposed to correct for positional discrepancies, to
maintain registration at borders in spite of signalling errors
in parallel channels. Such general avoidance of discrepancies
would require correcting shifts of position; which may be activated
by the asymmetrical luminances on either side of the borders and
narrow stripes to produce, in these particular displays distortions
of position and of stereo depth.
References
ANSTIS, S. M. (1970). Phi movement as a subtraction
process. Vision Research, 10, 1411 - 30.
ANSTIS, S. M. and ROGERS, B. J. (1975). Illusory
reversals of movement and depth during changes in contrast. Vision
Research, 15, 957 - 61.
BARLOW, H. B. and LEVICK, W. R. (1965). The
mechanism of directionally selective units in rabbits’ retina.
Journal of Physiology, 178, 477 - 504.
BORING, E. G. (1942). Sensation and Perception
in the History of Experimental Psychology. New York: Appleton
Century Crafts.
BRADDICK, O.J. (1974). A short range process
in apparent motion. Vision Research. 14, 519 - 27.
CLELAND, B. C. and LEVICK, W. R. (1974). Brisk
and sluggish concentrically organized ganglion cells of the cat’s
retina. Journal of Physiology, 240, 421 - 56.
FOLEY, J. M. and TYLER, C. W. (1976). Effect
of stimulus duration on stereo and vernier displacement thresholds.
Perception and Psychophysics, 20, 125 - 8.
GOURAS, P. (1968). Identification of cone mechanisms
in monkey ganglion cells in monkey retina. Journal of Physiology.
199, 533 - 47.
GRAHAM, C. H. (1965) The perception of movement.
In: GRAHAM, C. H., BARTLETT, N. R., BROWN, J. L., HSIA, Y., MUELLER
C. G. AND RIGGS, L. A. (Eds), Vision and Visual Perception.
New York: Wilev.
GREGORY, R. L. (1966). Eve and Brain.
London: Weidenfeld and Nicolson.
GREGORY, R. L. (1977). Vision with isoluminant
colour contrast: 1, A projection technique and observations. Perception,
6, 113 - 9.
GREGORY, R. L. (1979). Stereo vision and isoluminance.
Proceedings of the Royal Society B, 204, 467 - 76.
GREGORY. R. L. and HEARD, P. F. (1979). Border
locking and the cafe wall illusion. Perception. 8,
366 - 80.
HELMHOLTZ, H. VON. (1867). In: SOUTHALL, J.
P.C. S. (ed.) (1963) Handbook of Physiological Optics.
London: Dover reprint.
HUBEL, D. H. and WIESEL, T. N. (1968). Receptive
fields and functional architecture of monkey striate cortex. Journal
of Physiology, 195, 215 - 43.
KING-SMITH, P. E. and KULIKOWSKI, J. J. (1975)
Pattern and flicker detection analysed by subthreshold summation.
Journal of Physiology, 249, 519 - 48.
KORTE, A. (1915). Kinematoskopische Untersuchungen.
Zeizschrift für Pschologie, 72, 193 - 296.
MARR, D. (1982). Vision: A computational
Investigation into the Human Representation and Processing of
Visual information. San Francisco: W. H. Freeman and Co.
ROGERS, B. J. (1976). Perceptual consequences
of temporal and spatial summation in the human visual system.
Ph.D. Thesis Bristol University.
ROGERS, B. J. and ANSTIS, S. M. (1975). Reversed
depth from positive and negative stereograms. Perception,
4, 193 - 201.
TREISMAN, A. M. (1964). Selective attention
in man. British Medical Bulletin, 12 - 16.
TYLER, C. W. (1973). Stereoscopic vision: cortical
limitations and a disparity scaling effect. Science, NY.,
181, 276 - 8.
ULLMAN, S. (1979). The interpretation of visual
motion. Cambridge, Mass.: MIT Press.
WATT, R. J. and MORGAN, M. J. (1983). Mechanisms
responsible for the assessment of visual location: Theory and
evidence. Vision Research, 23, 97 - 109.
WEALE, R. A. (1974). Apparent size and contrast.
Vision Research, 15, 949 - 55.
WHITTLE, P. (1965). Binocular rivalry and the
contrast at contours. Quarterly Journal of Experimental Psychology,
17, 217 - 26.
ZEKI, S. (1974). Functional organization of
a visual area in the posterior bank of the superior temporal sulcus
of the Rhesus monkey. Journal of Physiology, 236,
549 - 73.
Revised manuscript received 14 January 1982
|
